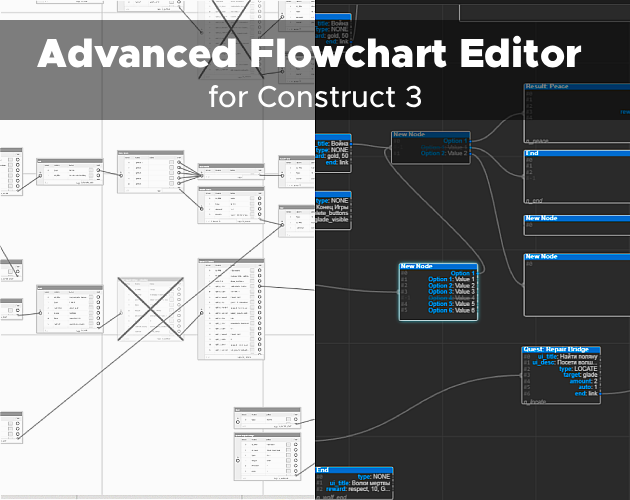

Advanced Flowchart Editor for Construct 3

Advanced Flowchart Editor for Construct 3

A browser-based flowchart editor that solves critical limitations of Construct 3's built-in editor. Supports batch operations, cross-project node import, and AI-friendly MiniFlow format for seamless integration with modern development pipelines.

Key Features

Batch Operations
Marquee selection for nodes and connections. Delete, copy, or disable multiple elements at once. No more clicking "Unlink" hundreds of times through context menus.

Multi-Project Workflow
Import and export flowcharts between different Construct 3 projects. Merge multiple graphs into one. Full compatibility with C3's native format (.json + .uistate.json).

MiniFlow Format
Human-readable JSON format for AI integration and version control. Generate dialogue trees with ChatGPT, then import directly. Stores only topology and node IDs without visual metadata.

Enhanced Interface
Bézier curves for connections instead of straight lines. Drag-and-drop output reordering. Full undo/redo history. Intuitive zoom and pan controls. View/Edit mode separation to prevent accidental changes.

Open Source & Free
Runs in any modern browser. No installation or registration required. Source code available on GitHub under MIT license.

What This Solves

File Formats

Native Format (.flowproj)
Preserves complete editor state: visual layout, undo/redo history, selection states, and all metadata. Recommended for saving work between sessions.

Construct 3 Format
Two-file system: .json (core data with numeric SIDs) and .uistate.json (visual state). Import both files to preserve layout. Export generates both automatically.

MiniFlow Format
Simplified topology-first format with human-readable node IDs. Perfect for AI generation, version control, and custom parsers. Automatically applies BFS-based auto-layout on import.

MiniFlow Example

{
        "root": "quest_start",
        "nodes": {
            "quest_start": {
                "caption": "Village Guard",
                "tag": "n_choice",
                "outputs": [
                    {
                        "name": "Accept Quest",
                        "value": "I'll help you!",
                        "next": "quest_accept"
                    },
                    {
                        "name": "Refuse",
                        "value": "Not interested.",
                        "next": "quest_decline"
                    }
                ]
            }
        }
    }

Controls

Workflow

1. Enable Edit Mode
2. Create nodes via Toolbar or Right-click → Add Node
3. Drag from output dots to create connections
4. Configure properties in right panel
5. Set Start Node via Context Menu
6. Save as .flowproj or Export for Construct 3
